Product Specification

Model Number: BGA68(8x12)-0.8-CP01NT

Type: BGA68-0.8 Burn in/programmer socket

Package: BGA68, VFBGA68

Pin Pitch: 0.8mm

Pin Count: 68 pins

Applicable IC body size: 8*12mm

Part number: BGA68(8x12)-0.8-CP01NT

structure: Clamshell

service life: 25,000times

Description:

BGA68 Clamshell burn in socket pitch 0.8mm IC size 8*12mm BGA68(8*12)-0.8-CP01NT BGA68 VFBGA68 burn in programmer socket

Specifications:

​​​​Part number:BGA68(8x12)-0.8-CP01NT
IC Package:BGA68, VFBGA68
Pin Pitch:0.8mm
Pin Count:68pins
IC Size:8*12mm
Structure:Clamshell

Material & Performance:

socket Body: PEI
Contacts:Beryllium Copper Alloy
Contact Plating:Gold over Nickel
Operation Force:2.0KG min, the more PINs the greater force.
Contact Resistance:50mΩ max
Dielectric:700V AC for 1 minute
Insulation Resistance:1,000MΩ 700V DC
Max Current Capacity : 1A
Temperature Rating:-55℃~+175 ℃
Life Span 25,000 Times (Mechanical)



A:Tips:

Welcome to visit our KZT-Store,If you have any questions,please leave message to us.

If you want to buy more quantites about this one.please connect with me and ask me to get the better price.

Thanks.

B.BGA socket New creation

a.connect with PCB ways Innovation

Socket New creation

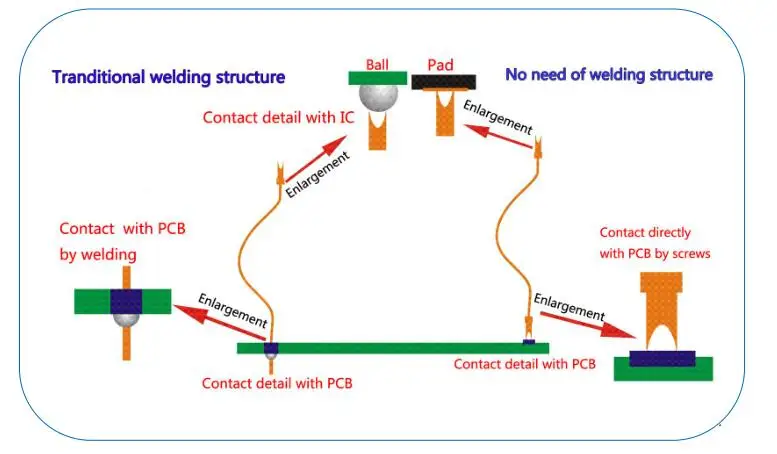

                          Welding structure :                                                                                                         No need of welding structure:
                          Way:Fix by welding                                                                                                         Way:Fix by 4 screws
                          Pin length:1.83mm                                                                                                      Pin length:0.25mm

      Two structure features:
             1.Welding structure :
                Adopt traditional welding type to fix the socket and PCBA board , stable but waste time and
                effort , and once the socket is welded , it can’t be recycle ;
                2.No need of welding structure :
                Adopt innovative screws locking type to fix the sockets and PCBA board , ensure contact is
                stable , meantime shorten the assembly time , time-saving and reduce effort , and socket
                can be removed from the PCBA board , recycle and reduce test cost ;
all ways


b.Connect with IC ways Innovation

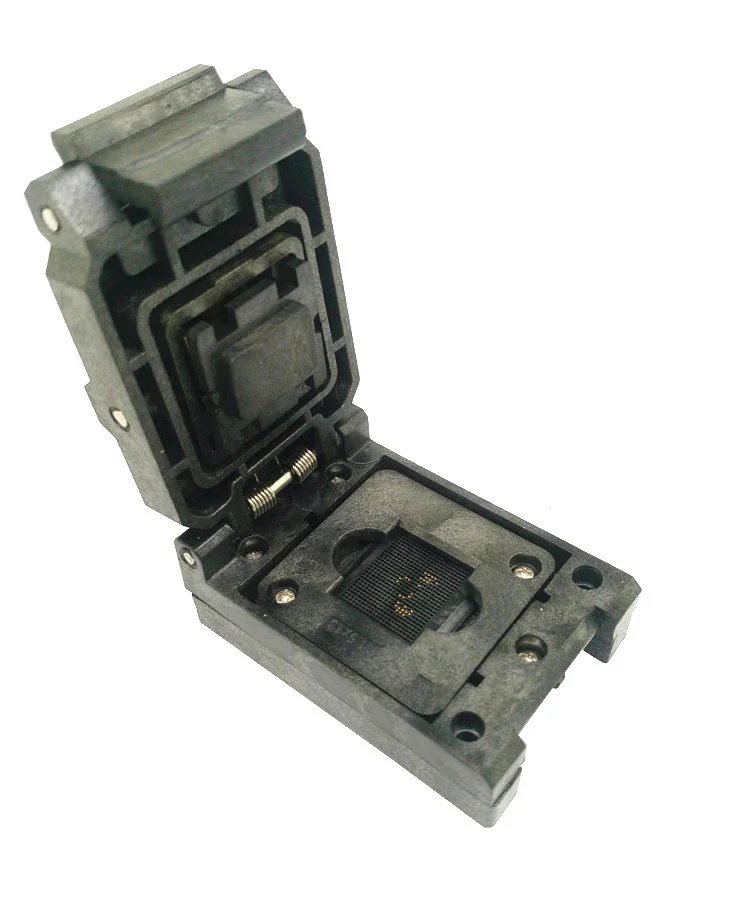

1.Open-top/Clamshell structure
2.Accommodates pitch :4/0.5/0.65/0.8/1.0mm
3.Compact size and low Actuation Force
4.Field exchangeable package location plate
5.“U”contact support any type of solder ball shape
(Ball\no ball\damaged ball,the drop of contact
surface is more than 0.2mm)
IC connect ways

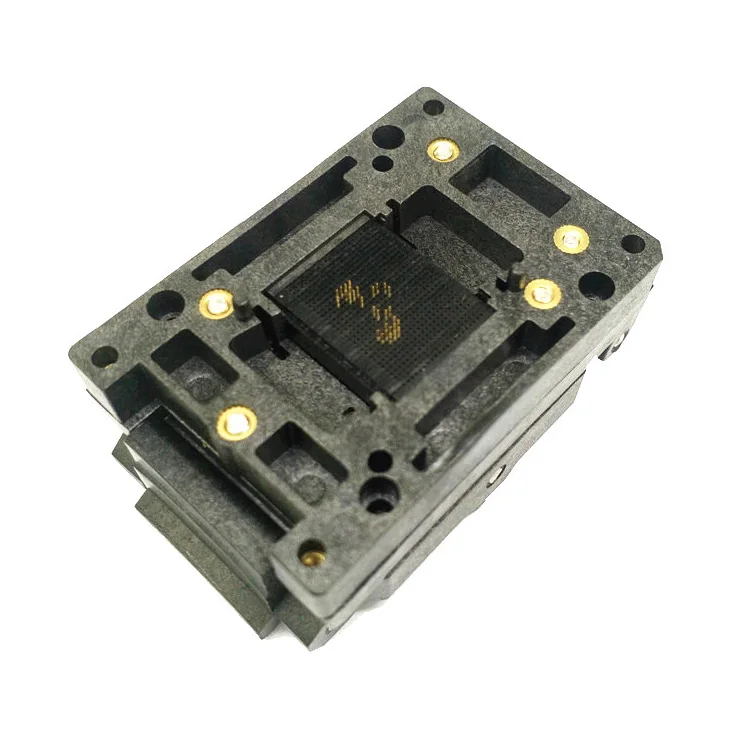

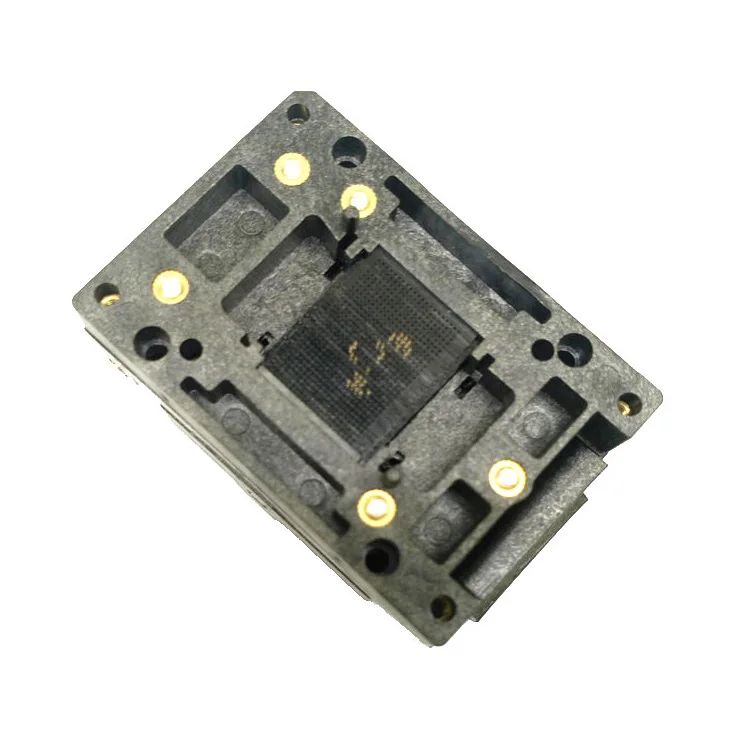

C.HD picture to show the detailed product



           BGA-01BGA-03BGA-04BGA-05



003











02shipment

03-about-us

04-feedback
